    360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane

    Ask Lasest Price
    Brand Name : ZHONGMEI
    Model Number : 3 Ton Crawler Crane
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : Quantity(sets) 1 - 1000 5 days
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane

    360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane

    360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane

    Introduction of 360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane


    The price of the spider crane is calculated according to the configuration of the car. The spider crane is miniature design, small in size and strong in lifting capacity. Reasonable design, simple operation, easy to learn and understand, zero work pressure. Use wireless remote control or body switch to operate, the operation is fast.


    Say goodbye to the era of narrowly relying on human work, which not only improves work efficiency but also ensures work safety. The spider crane adopts rubber crawler type hydraulic traveling device, and the hoisting, telescopic, heave and rotation devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of 3D modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance.


    Spider cranes have a large lifting capacity and can carry heavy objects for lifting and handling. It is widely used in fields such as road construction, bridge construction, municipal engineering, and petrochemical industry. The spider crane is easy to operate, has high safety and stability, and can improve work efficiency and construction quality.


    In short, the road crane spider crane is a powerful and flexible lifting equipment, which is suitable for various Roadworks and lifting operations. It can improve work efficiency and ensure construction safety, and is one of the indispensable and important equipment for modern construction sites.

    Product Paramenters

    Parameters of 360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane

    Specification
    2.95t
    Maximum working radius
    7.8m × 0.2t
    Maximum ground lift
    9.2mX0.8t
    Winch
    Hook up speed
    0-8m/min
    Wire Rope Specifications
    Φ8mm×45m
    Telescopic device
    Boom form
    5 -section boom , U-shaped high-strength manganese
    Boom length/time
    2.8 m- 8.2 m/2 2 sec
    Undulating Device
    Boom angle/time
    0-7 5 °/13sec
    Gyratory Device
    Rotation angle/speed
    0-360° (continuous)/60sec
    Outrigger
    Outrigger Action Form
    Manual unscrewing + hydraulic automatic support (two legs)
    Maximum extension (mm)
    4010 (long) X 3260 (rear) , (front)
    Walking device
    way of walking
    Hydraulic motor drive, two-speed
    Walking speed
    0-2.5km/h
    Gradeability
    20° (36%)
    Motor
    Voltage
    AC380V
    Engine
    Producer
    Chang Chai
    Type/displacement
    EV80/F195
    Start method
    Electric start
    Startup performance
    -5°C~40°C
    fuel/volume
    Diesel / 8 L
    battery capacity
    12v 45AH
    Fuel consumption
    274g/kW-h
    noise level
    Rated speed≤81.5dBA (1m)
    Emission Standards
    Country II
    Operating system
    Type of operation (jib/outrigger), manual travel
    Manual operation, manual walking + remote control (optional)
    Operating characteristics
    Comai hydraulic system (optional)
    The standard configuration
    Diesel engine and electric motor (dual power)
    Vehicle size
    Length 2830*width 800*height 1650
    Craftsmanship
    Paint assembly process
    Details Images

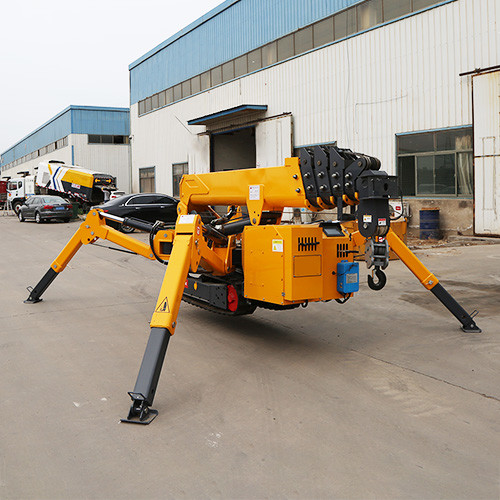

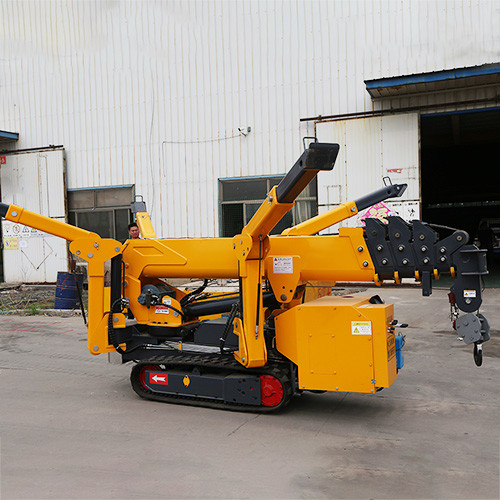

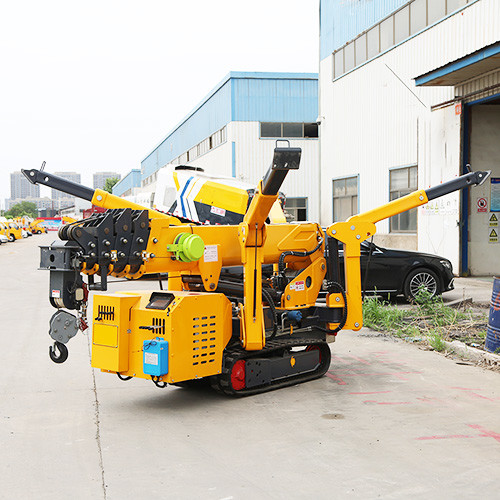

    Photos of 360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane

    360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane

    360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane360 Degree Hydraulic Slewing JIB Cranes 3000kg Crawler Cantilever Spider Crane
