    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    Ask Lasest Price
    Brand Name : ZHONGMEI
    Model Number : 8T
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : Quantity(sets) 1 - 1000 5 days
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    Introduction of ZHONGMEI 8 Ton Mini Spider Craner Electric Movable Small Spider Cranes With CE Certificate


    Now the aerial construction is also more and more complex, and there are many parts of the aerial site, remote location, space is small, resulting in many normal large aerial work vehicles, such as many car cranes are difficult to expand the legs, even if they can barely get into this small work space, is also unable to normal lifting operations, or let lifting capacity greatly reduced.


    In particular, some large shopping malls, large office areas of indoor aerial work, on some car cranes and aerial work vehicles is a great restriction, not only in these areas of work is difficult to carry out normal lifting operations, and even in many times normal access to these work areas are difficult.


    The road crane spider crane is a mechanical equipment specifically used for lifting operations on roads. It has a unique spider shaped structure and can stably stand on uneven roads for work.

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    Product Paramenters

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    Parameters of ZHONGMEI 8 Ton Mini Spider Craner Electric Movable Small Spider Cranes With CE Certificate


    Maximum working radius
    16m*0.2t
    Maximum ground lift
    17m*0.9t
    Winch
    Hook up speed
    0- 10 m/min
    Wire Rope Specifications
    Φ10mm*120m
    Telescopic device
    Boom form
    5 -stage boom
    Boom length
    4.5m-16m
    Undulating Device
    Boom angle/time
    0-7 5 °/13sec
    Gyratory Device
    Rotation angle/speed
    0-360° (continuous)/60sec
    Outrigger
    Outrigger Action Form
    Hydraulic automatic support + manual unscrewing
    Maximum extension (mm)
    6300 (L) X 4600 (Rear) , (Front)
    Walking Device
    way of walking
    Hydraulic motor drive, two-speed ( rubber track )
    Walking speed
    0-5.5 km /h
    Gradeability
    20° (36%)
    Motor
    Voltage
    AC380V
    Engine
    Producer
    Yunnei
    Type/displacement
    YN27GBZ/2.7L
    Start method
    Electric start
    Startup performance
    -5°C~40°C
    fuel/volume
    Diesel / 45 L
    battery capacity
    24v 45AH
    Fuel consumption
    230 g/kW-h
    noise level
    Rated speed≤81.5dBA (1m)
    Operating System
    Type of operation (jib/outrigger), manual travel
    Manual operation, manual walking + remote control (optional)
    The standard configuration
    Diesel engine and electric motor (dual power)
    Vehicle size
    Length 4950*width 1560*height 2235
    Craftsmanship
    Paint assembly process

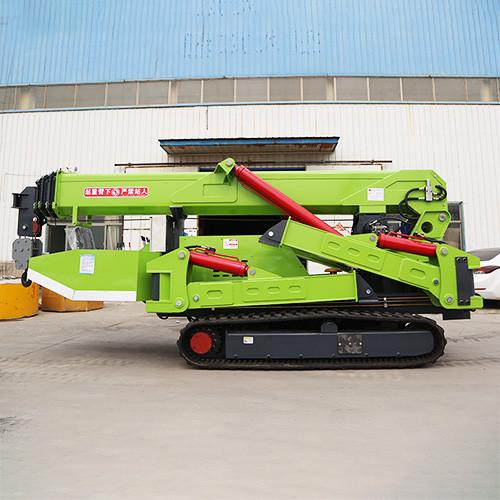

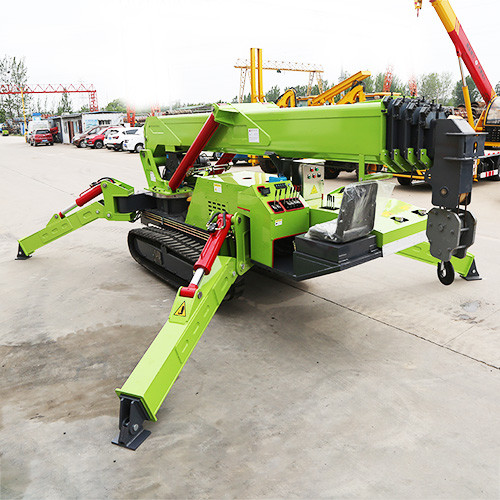

    Details Images

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    Photos of ZHONGMEI 8 Ton Mini Spider Craner Electric Movable Small Spider Cranes With CE Certificate


    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate

    ZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE CertificateZHONGMEI 8T Heavy Duty Lifting Machine Spider Lifting Cranes With CE Certificate
