    ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

    Ask Lasest Price
    Brand Name : ZHONGMEI
    Model Number : 3 Ton
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : Quantity(sets) 1 - 1000 5 days
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

    ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper


    Introduction of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper


    The versatility of crawler dump trucks is enhanced by their ability to traverse steep slopes and uneven terrain. The combination of the tracked undercarriage and the powerful engine allows the truck to climb gradients that would be difficult or impossible for wheeled vehicles. This capability is especially valuable in mining operations, where materials need to be transported from deep excavations or remote locations.


    Operator comfort and safety are essential considerations in the design of crawler dump trucks. The operator's cab is designed to provide a comfortable working environment, with ergonomic controls, adjustable seats, and excellent visibility. Safety features such as rollover protection structures (ROPS), reinforced cabins, and seat belts are incorporated to protect the operator in case of accidents or rollovers. Some models may also have advanced features like rear-view cameras and automatic stability control systems to enhance safety during operation.


    Parameters of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

    L*W*H(mm)
    3300*1600*2100
    Startup Method
    Electric Start
    Container Size
    2200*1500*600
    Driving Method
    Mechanical Drive
    Max. flat Road Loading
    3T
    Track Material
    Engineering Steel Wire Rubber Track
    Engine
    Horizontal Bar Full Diesel Water Cooling (22hp) Power: 16.18kw
    Gear
    Six Forward And Two Backward
    Whole Vehicle Weight(T)
    1.5
    Grounding Length
    1680
    Crawler Model(mm)
    350*90*56
    Ground Clearance(cm)
    67
    Transmission Material Model
    Solid Power Nodular Cast Iron21#
    Standing Slope Angle
    35°
    Max. Speed
    15km/h
    Number Of Bottom Steel Wheels
    5 Large + 2 Small
    Min. Speed
    4.5km/h
    Self-unloading Function
    Hydraulic Self Unloading
    Chassis Width(m)
    1.6
    Packing Dimensions
    14m³

    L*W*H(mm)
    3500*1600*2100
    Startup Method
    Electric Start
    Container Size
    2300*1500*600
    Driving Method
    Mechanical Drive
    Max. flat Road Loading
    4T
    Track Material
    Engineering Steel Wire Rubber Track
    Engine
    Weichai Huajie 490 Power: 42kw
    Gear
    Six Forward And Two Backward
    Whole Vehicle Weight(T)
    1.6
    Grounding Length
    1780
    Crawler Model(mm)
    3200*900*560
    Ground Clearance(cm)
    67
    Transmission Material Model
    Solid Power Nodular Cast Iron21#
    Standing Slope Angle
    35°
    Max. Speed
    25km/h
    Number Of Bottom Steel Wheels
    6 Large + 2 Small
    Min. Speed
    4.5km/h
    Self-unloading Function
    Hydraulic Self Unloading
    Chassis Width(m)
    1.6
    Packing Dimensions
    15m³

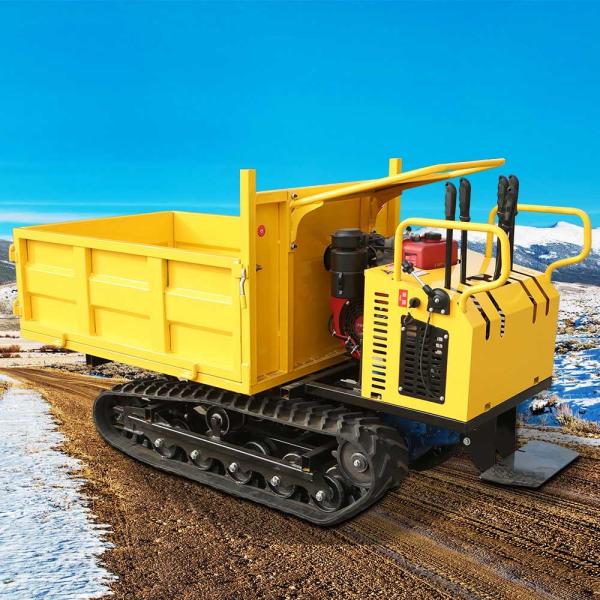

    Photos of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper


    ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

    ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader DumperZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
